SCHÜTZ LASER DRUM – Comprehensive corrosion protection through a revolutionary production process.

SCHÜTZ unites high-quality material with the latest joining technology to set a new standard in steel drums: our laser drum.

To achieve all this, we use sheet steel directly from the coil that is hot-dip galvanised on both sides
By galvanising the sheet steel in the melting bath before the coil is wound, the base material has a high-quality, comprehensive and uniformly distributed layer of zinc

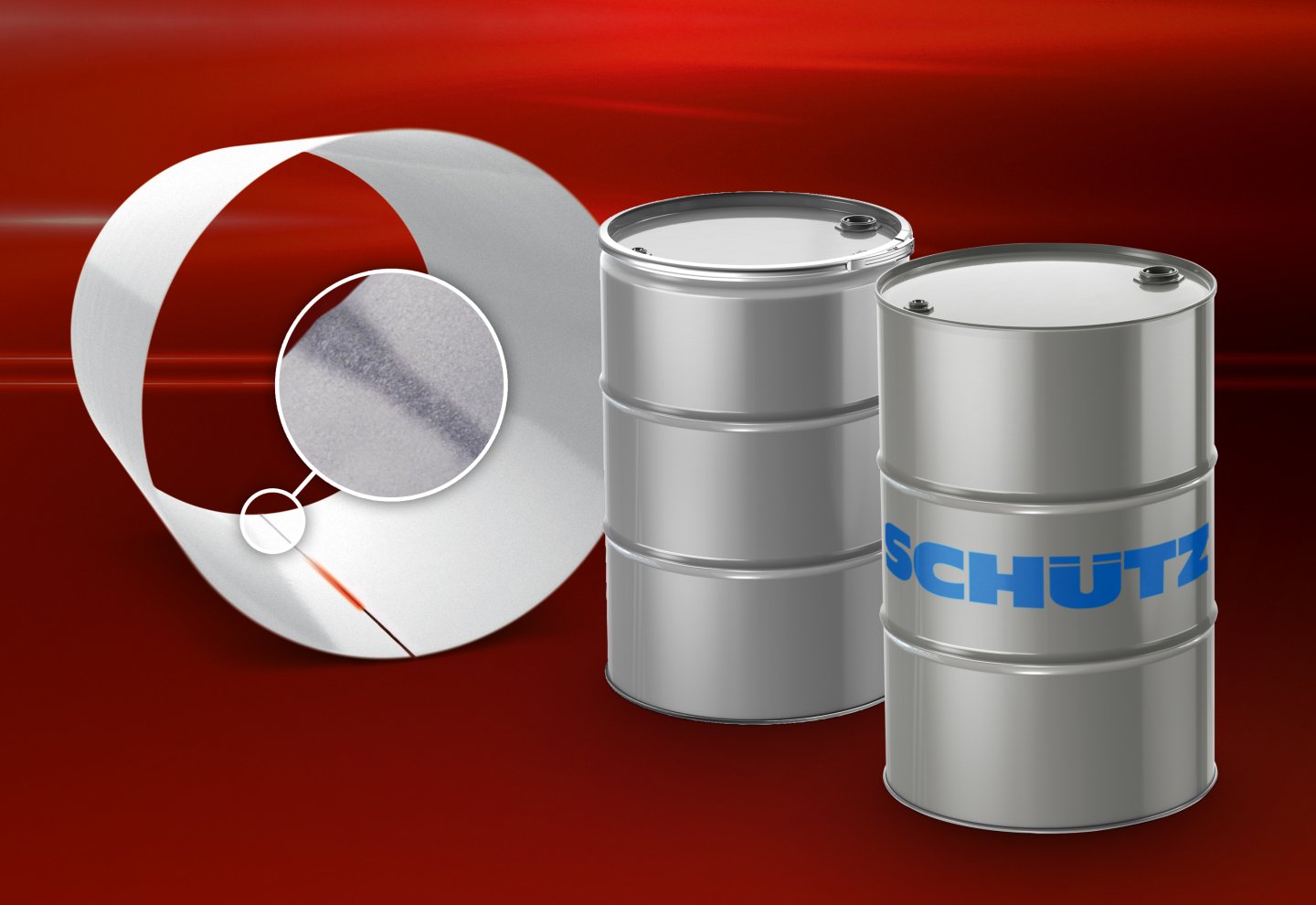

The drum shell is shaped using a special laser welding process in which the sheets are butt-welded together
The result is a high-quality, smooth and clean weld seam approx. 2 – 3 mm wide
After inline lid and base assembly, the steel drum is fully protected against corrosion and ready for dispatch
Product can be customer-branded with screen printing
OPTION: SCHÜTZ composite laser drum CLF – An integrated inner bottle made of high-grade plastic guarantees maximum product purity and double leakage protection

SCHÜTZ laser drum – Tight-head drum
Volume
216,5 litres
Material thickness
(lid, shell, base)
1,2 mm
(other thicknesses available on request)
Zinc layer
interior and exterior
Hazardous goods approval
UN Standart approvals
Weight
21,9 kg

Increased cleanliness of the packaging and thus reduction of contamination risks compared with drums without protection against corrosion

The basic material is already protected against corrosion:

Minimized quality risks in the production process
Increased delivery flexibility and supply security compared with conventional galvanized drums

Highly efficient production process with a downstream coating line and kiln:

No need for internal or inter-company transport and storage processes
Eliminates the risk of damage or contamination
No danger of drips, inclusions, pitting or remaining residues

Brochure SCHÜTZ Laser Drum

Download PDF

Datasheet Composite Laser Drum CLF

Download PDF

overview back next

Volume	216,5 litres
Material thickness (lid, shell, base)	1,2 mm (other thicknesses available on request)
Zinc layer	interior and exterior
Hazardous goods approval	UN Standart approvals
Weight	21,9 kg

Volume	210 litres 213 litres
Material thickness (lid, shell, base)	1,2 mm (other thicknesses available on request)
Zinc layer	interior and exterior
Hazardous goods approval	UN Standart approvals
Weight	21,9 kg 22,5 kg
