SCHÜTZ OC – the open-head drum with base ring.

The ideal drum system for transporting chemicals. These drums were designed specially for the North American market and comply with the standard US dimensions.


Advantages:

  • Standardized production worldwide simplifies reconditioning and multiple usage
  • Production in the United States, Mexico, and upon request in Germany
  • Base ring on bottom provides greater stability, better stacking and easier handling when rolling
  • Can be handled with conventional grippers – same handling as with plastic/steel and fibre drums
  • Container dimensions compliant with ISO specifications
  • Available with closed lid or filling opening closures (on request)

Brochure SCHÜTZ PE Drums | Steel Drums
Download PDF

Product Variants*

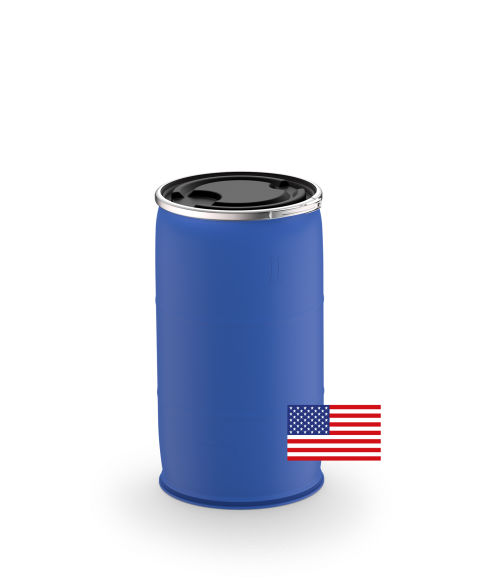

132 litres / 35 GALLON

OC OPEN-HEAD DRUM

Product details
Exterior height860 mm / 34 inches
Exterior diameter474 mm / 19 inches
Hazardous goods certification (min.)UN 1H2/Y125/S/
Weight
7.5 kg / 17 lbs
add to watchlist
Product details
Exterior height860 mm / 34 inches
Exterior diameter474 mm / 19 inches
Hazardous goods certification (min.)UN 1H2/Y125/S/
Weight
7.5 kg / 17 lbs
add to watchlist

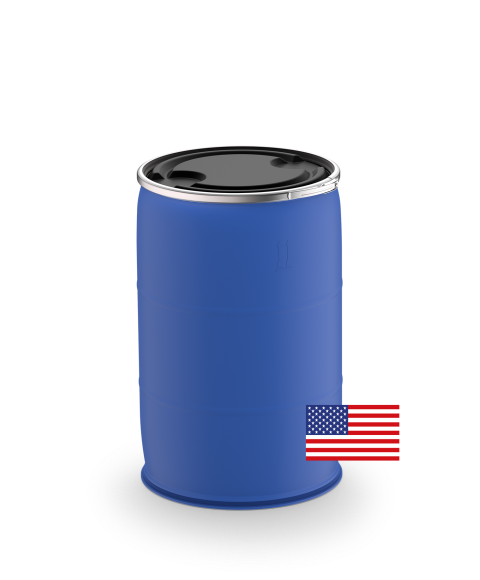

208 litres / 55 gallon

OC OPEN-HEAD DRUM

Product details
Exterior height940 mm / 37 inches
Exterior diameter578 mm / 23 inches
Hazardous goods certification (min.)UN 1H2/Y300/S/
Weight
11.1 kg / 23 lbs
add to watchlist
Product details
Exterior height940 mm / 37 inches
Exterior diameter578 mm / 23 inches
Hazardous goods certification (min.)UN 1H2/Y300/S/
Weight
11.1 kg / 23 lbs
add to watchlist
Product details
Exterior height860 mm / 34 inches
Exterior diameter474 mm / 19 inches
Hazardous goods certification (min.)UN 1H2/Y125/S/
Weight
7.5 kg / 17 lbs
add to watchlist
Product details
Exterior height940 mm / 37 inches
Exterior diameter578 mm / 23 inches
Hazardous goods certification (min.)UN 1H2/Y300/S/
Weight
11.1 kg / 23 lbs
add to watchlist
*The drum types shown here comprise our standard line. We will be glad to answer your enquiries about customized designs and additional technical details regarding the drum types shown here.
