SCHÜTZ F1 tight-head drums – The new global standard.

Global availability and universal usability make the SCHÜTZ F1 tight-head drum the perfect all-round product for companies that operate globally.


The innovative design and advanced manufacturing methods give the F1 drum decisive advantages compared with conventional tight-head drums, and they set new standards in performance and handling.

Brochure SCHÜTZ PE Drums | Steel Drums
Download PDF

Product Variants*

208 litres

F1

Product details
Exterior height882 mm
Exterior diameter592 mm
Filling opening2“buttness x 2“NPS
Hazardous goods certification (min.)UN 1H1/Y1.9/150/…
Weight
8.8 kg
add to watchlist
Product details
Exterior height882 mm
Exterior diameter592 mm
Filling opening2“buttness x 2“NPS
Hazardous goods certification (min.)UN 1H1/Y1.9/150/…
Weight
8.8 kg
add to watchlist
220 litres

F1 TIGHT-HEAD DRUM

Product details
Exterior height935 mm
Exterior diameter581 mm
Filling openingS70 x 6/S56 x 4
Hazardous goods certification (min.)UN 1H1/Y1.9/200/…
Weight
8.1 kg
add to watchlist
Product details
Exterior height935 mm
Exterior diameter581 mm
Filling openingS70 x 6/S56 x 4
Hazardous goods certification (min.)UN 1H1/Y1.9/200/…
Weight
8.1 kg
add to watchlist

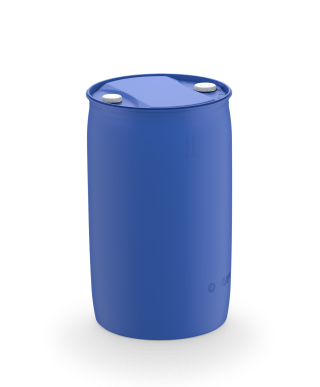

235 litres

F1 TIGHT-HEAD DRUM

Product details
Exterior height993 mm
Exterior diameter581 mm
Filling openingS70 x 6/S56 x 4
Hazardous goods certification (min.)UN 1H1/Y1.9/200/...
Weight
9.0 kg
add to watchlist
Product details
Exterior height993 mm
Exterior diameter581 mm
Filling openingS70 x 6/S56 x 4
Hazardous goods certification (min.)UN 1H1/Y1.9/200/...
Weight
9.0 kg
add to watchlist
Product details
Exterior height882 mm
Exterior diameter592 mm
Filling opening2“buttness x 2“NPS
Hazardous goods certification (min.)UN 1H1/Y1.9/150/…
Weight
8.8 kg
add to watchlist
Product details
Exterior height935 mm
Exterior diameter581 mm
Filling openingS70 x 6/S56 x 4
Hazardous goods certification (min.)UN 1H1/Y1.9/200/…
Weight
8.1 kg
add to watchlist
Product details
Exterior height993 mm
Exterior diameter581 mm
Filling openingS70 x 6/S56 x 4
Hazardous goods certification (min.)UN 1H1/Y1.9/200/...
Weight
9.0 kg
add to watchlist
*The drum types and filling opening models shown here comprise our standard line. We will be glad to answer your enquiries about customized designs and additional technical details regarding the drum types shown here.

Performance advantages compared with standard drums:

  • Enhanced performance in low-temperature drop tests
  • Increased low-temperature impact strength
  • Higher resistance to chemicals and cracking
  • Significantly higher stacking strength
Low tare weight
Reduced material quantity and compliance with the highest safety standards gives the F1 drum an excellent eco balance.
Efficient transport and easy handling
The drum dimensions are optimised for transport in ISO containers. The stable upper ring and the grip hole in the base guarantee easy handling – and can be easily moved with all standard drum grippers.
Best stackability
The L-ring is higher than the top plate, meaning that the weight is transmitted to the drum walls without causing deformation or bulging.
Optimum protection of bungs and labels
The bungs and labels are ideally protected during transport and stacking, as the top plate is not exposed.
Best residual draining
The optimised geometry of the upper plate with sloping sides enables residual draining to less than 100 ml (in accordance with VPA) through both bung holes.
Suitable for automatic filling lines
The bungs are precisely calibrated and the bottom plate, which is optimised for automatic filling systems, has excellent stability and handling characteristics.
Top plate drainage
A small opening in the L-ring of the SCHÜTZ F1 prevents liquid from collecting on top of the drum.

We offer you a wide range of plugs  –
perfectly fitted to your drum and application.

Variants

  • Closed
  • For deaeration
  • For aeration and deaeration

Gaskets

  • Material EBA
  • Material EPDM

Specials

  • Hydrophobic
  • Super-resistant

Size

  • S70 x 6
  • S56 x 4
  • S38 x 6

Please contact us!

SCHÜTZ F1 FOODCERT


 To offer customers in the food segment the comprehensive safety they require we have developed a new premium standard for our packaging:

schuetz-foodcert_fssc-22000.svg

  • Highest food safety with regard to material, manufacturing process and end product
  • Fully conforms to the standards of international food laws
  • System certification in accordance with FSSC 22000 (Food Safety System Certification)
  • Certification recognised by the GFSI (Global Food Safety Initiative)
  • Comprehensive preventive measures in accordance with HACCP
  • Full traceability back to batch and process level
  • Halal and kosher certification

SCHÜTZ F1 CLEANCERT


Packaging is an essential quality factor in an increasing number of industries. CLEANCERT is the highest cleanliness and safety standard for product and process that SCHÜTZ offers:

schuetz-cleancert.svg

  • Comprehensive risk prevention measures in production based on extensive HACCP analyses according to FMEA methodology
  • Finished packaging has the highest technical cleanliness
  • Full traceability back to batch and process level
  • Material of components that come into contact with the filling good free of silicones
  • The drums are individually packed and stored in covered areas (optional) prior to shipping

OPTION: INSIDE LAYER NATURAL




To ensure the highest material compatibility the drums can optionally be produced with an inner layer made of undyed, high purity HDPE.
